Commercial

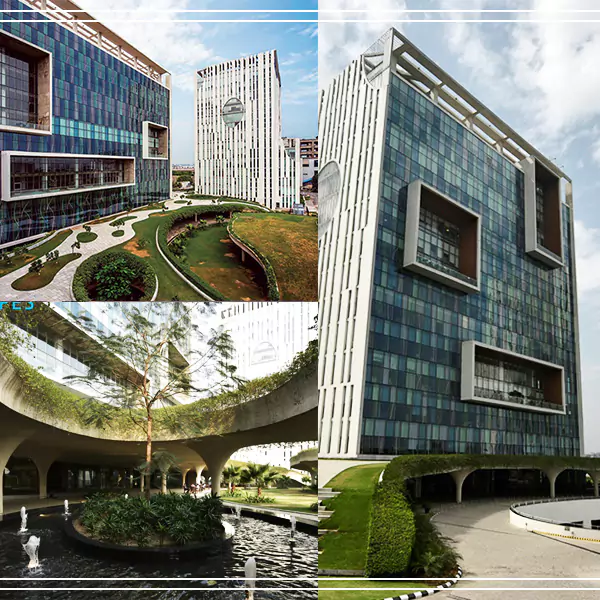

Vatika Mindscapes

1.3 mn sqft Commercial and Retail Campus

The first A Grade commercial complex on main Mathura Road comprising office and retail spaces. Vatika Mindscapes is adjacent to Sarai metro station and minutes away from the commercial hub of South Delhi.

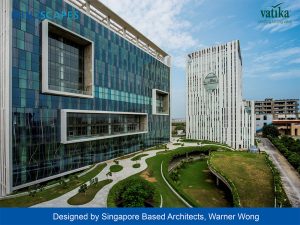

Designed by Singapore based architects, Warner Wong, Vatika Mindscapes brings you a business environment with the best of facilities and location advantages. The complex has been designed to facilitate business in every way, from the way the floor plan optimizes space utilization to incorporating facilities and features that are indispensable in the modern corporate world.

pdf Download Commercial Application Form

Vatika Mindscapes

Esteemed Clients

client

VATIKA GROUP

VATIKA Group has consistently focused on developing people oriented projects that are commercially viable, architecturally outstanding and designed for the foreseeable future.

  • 3 decades
  • 6 mn sq ft: Commercial & Retail Projects
  • 7 mn+ sq ft: Residential Projects
  • 1,000 acres developed Township

FIRST INDIA PLACE

FIRST INDIA PLACE
0.17 Mn sq ft

VATIKA BUSINESS PARK
0.9 Mn sq ft

VATIKA CITY CENTRE
0.1 Mn sq ft

VATIKA TRIANGLE
0.14 Mn sq ft

VATIKA TOWERS
0.4 Mn sq ft

VATIKA CITY POINT
0.17 Mn sq ft

Amenities

Vatika Mindscapes, Sector 27D, Mathura Road, Badarpur Border, Faridabad

Corporate Retail

Corporate Retail

ATMs

ATMs

Food Court

Food Court

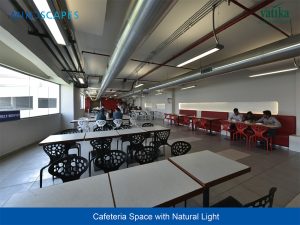

Cafeteria

Cafeteria

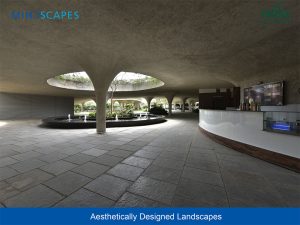

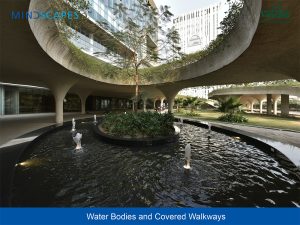

Landscaped Walking Deck

Landscaped Walking Deck

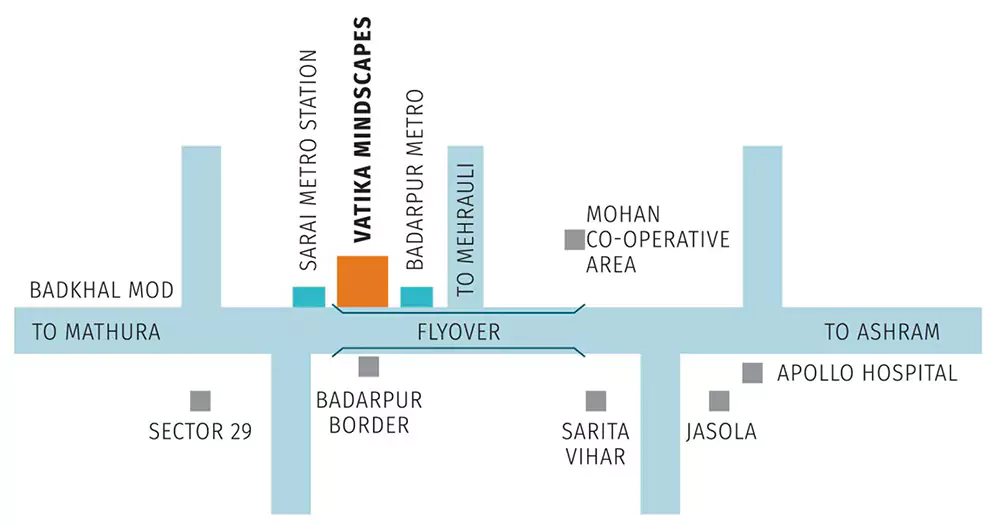

Location Map

location

1.4 mn sq ft Premium Commercial Campus

metro train
Adjacent to Sarai metro station

FandB
F&B within the campus

drive
8 mins drive from South Delhi

Hotels
Hotels within 5 mins drive

Price Details

Retail Space / Food Court Space / Office Space / Pre-Rented Properties / Pre-Rented Shops Available

For Price Details, Please Call Us at +91 9910363488‬

Details

  • Home area (sqft):
    1.4 Million sqft
  • Price (₹):
    27 lacs Onwards
  • Status:
    For Sale

Floor Plans

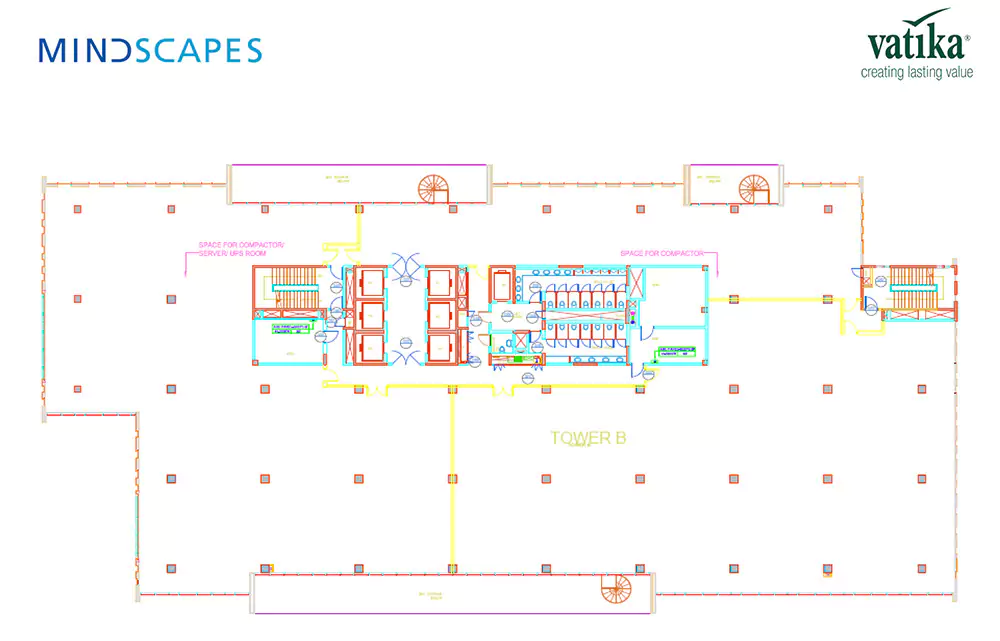

Typical Floor (Block B) - 1st to 5th Floor

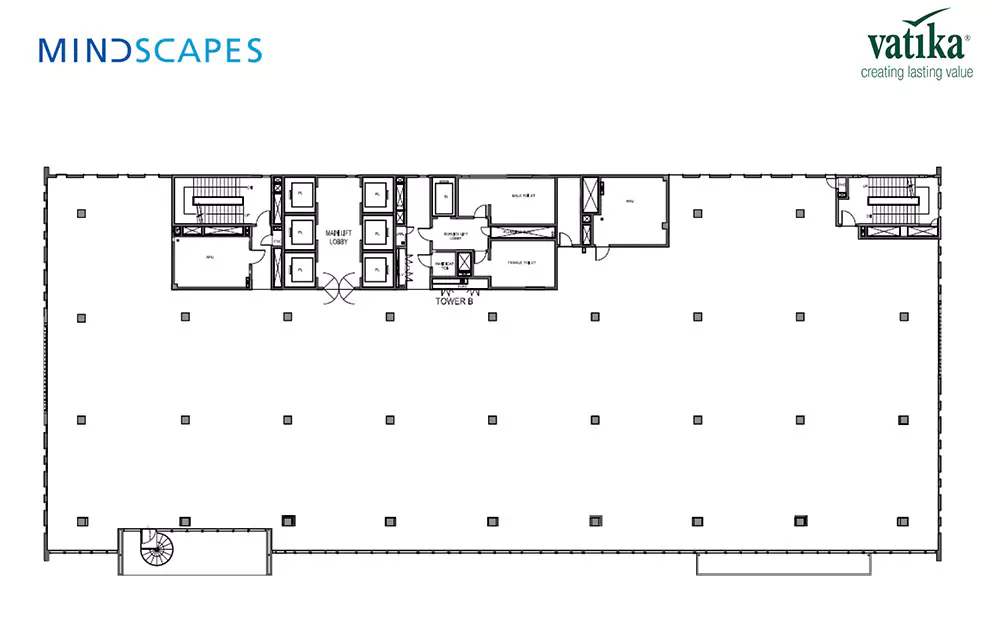

Typical Floor (Block B) - 6th to 11th Floor

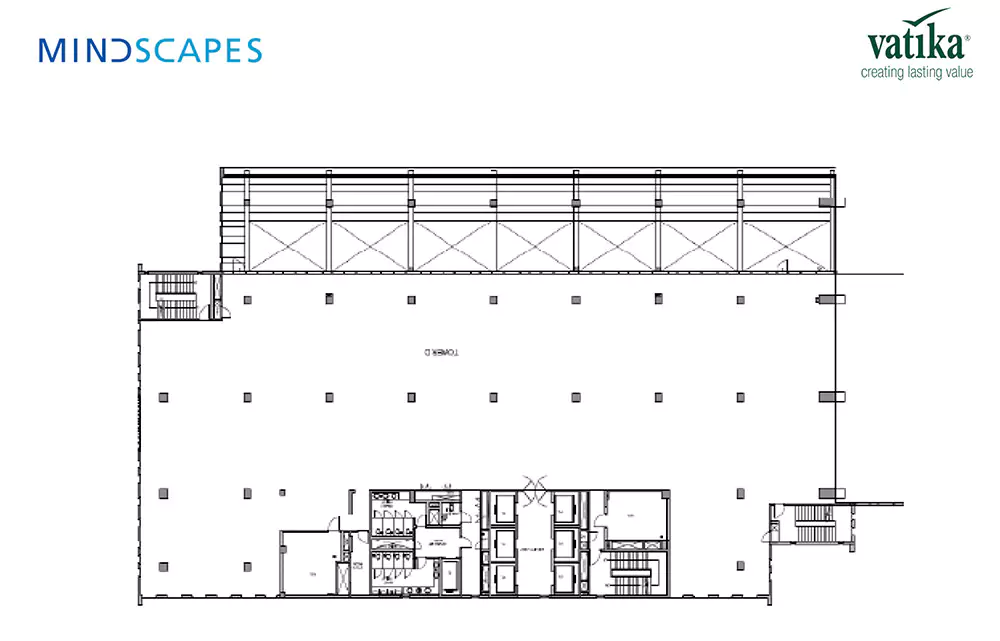

Typical Floor (Block D) - 1st to 5th Floor

TECHNICAL SPECIFICATIONS

Building Configuration

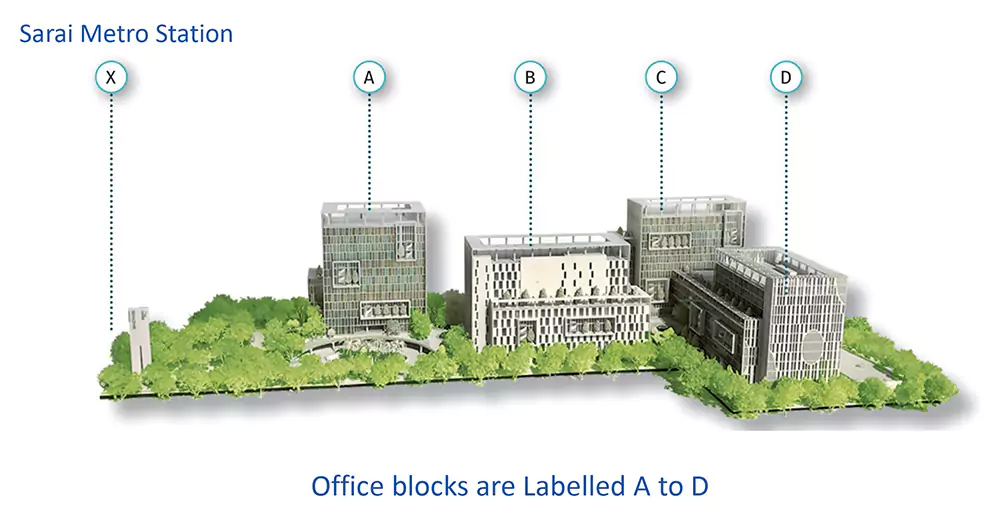

office blocks

1.3 Million sq ft Premium Office Space spread across 4 Towers

Tower Floors Super Area
Tower A Ground + 14 2,84,426
Tower B Ground + 11 4,00,498
Tower C Ground + 14 2,90,000
Tower D Ground + 9 3,03,750
Total 12,82,674
Stand Alone Retail Block 4,000

Details

Equipment Details Details
Building Design Concept

The project has been envisaged as a CAMPUS development with 4 buildings spread inside a vibrant green. The built up masses to follow the keywords of designing "INSIDE OUT". The design aim at creating an active environment that caters to the needs of the occupants. The aim is to harmonically stitch all the buildings together, accentuating the Campus feel.

Optimal size floor plates and the overall objective is to create a building that has a futuristic approach with an open and intelligently planned environment.
USP of Floor Plate design PT slab system with Capitals
Floor Loading Block A&B: live load 400kg/m2
Block C&D: live load 300 Kg/m2
Type of Chillers Centrifugal Chiller
Make of Chillers Carrier
Chiller Capacity 3x 720 TR(Water Cooled)+2x320 TR(Air-Cooled)
USP of Chillers iKW/TR: 0.63
AHU Make Waves/Suvidha
DG Sets Configuration 8 x1500 KVA(HT)
DG Sets Make Sudhir
Air Filtration System in Common Areas AHU for Corridor Air-conditioning, MERV-8 filter is used.
Air Filtration System in Tenant Space Tenant Area AHUs have MERV-8 filter.
ASHRAE Standard Ratings HVAC system designed as per ASHRAE.
Glazing Double Glazed

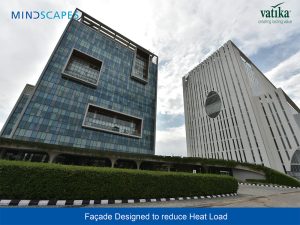

Façade USPs
  • Punched windows with minimal curtain glazing
  • The punched windows to be single glazed.
  • An attractive amalgamation of Glazed facade and Fittings creates an interaction between the interior and external designs and elements
  • Minimal stone cladding
  • Most of the surfaces of each building to be textured paint finish.

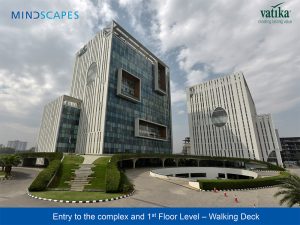

  • The interactive space between all the blocks THE DECK creates an architecture user friendly interactive space which culminate an aesthetic and architecture features of facade connect through each other
Well Being Measures
  • Fresh air is being provided as per ASHARAE 5 CFM per person+ .05 CFM per Sq.ft.).
  • MERV-8 Filter provided in AHU.
Rain Water Harvesting Provided 4 Nos. Rain water harvesting pit and 4 Nos. Rain water recharge pit
Zero Discharge Building Yes, STP recycled treated water used within building
Water Conservation Measures Yes, recycled treated water used for horticulture, flushing, HVAC cooling water, used water saving fixtures and flushing
Energy Conservation Measures
  • 1. High Efficiency Chiller iKW/TR 0.63
  • 2. Premium efficiency Motor: IE2
  • 3. Use of LED lighting
Lifts (Make, Capacity and Speed)
  • Block A & B- Kone -17 pax- @ 1.7m/sec speed
  • Block C & D- Hitachi-17 Pax- @ 1.7m/sec speed
USPs for Lifts All cabin car walls of SS make with 900 mm hand grab bars. With an aesthetic culmination of SS metal & Lift lobby, creates a mood and feeling of design and aesthetics.
Security Layers and Systems for common areas
  • Access Control system (All basement lift lobby: access card control and ground floor: Flap Barriers /turstile with electronic card swipe)
  • Manned Security (Check posts at key locations within the complex)
  • Boom Barrier (at basement entry and exits) and
  • CCTV Surveillance (Main Entrance, Main Lift Lobby, Basement Lift Lobbies / Ramps & Staircase Exit)
Air Conditioning System Water Cooled Chiller System+ Air Cooled Chilling(Partial)
